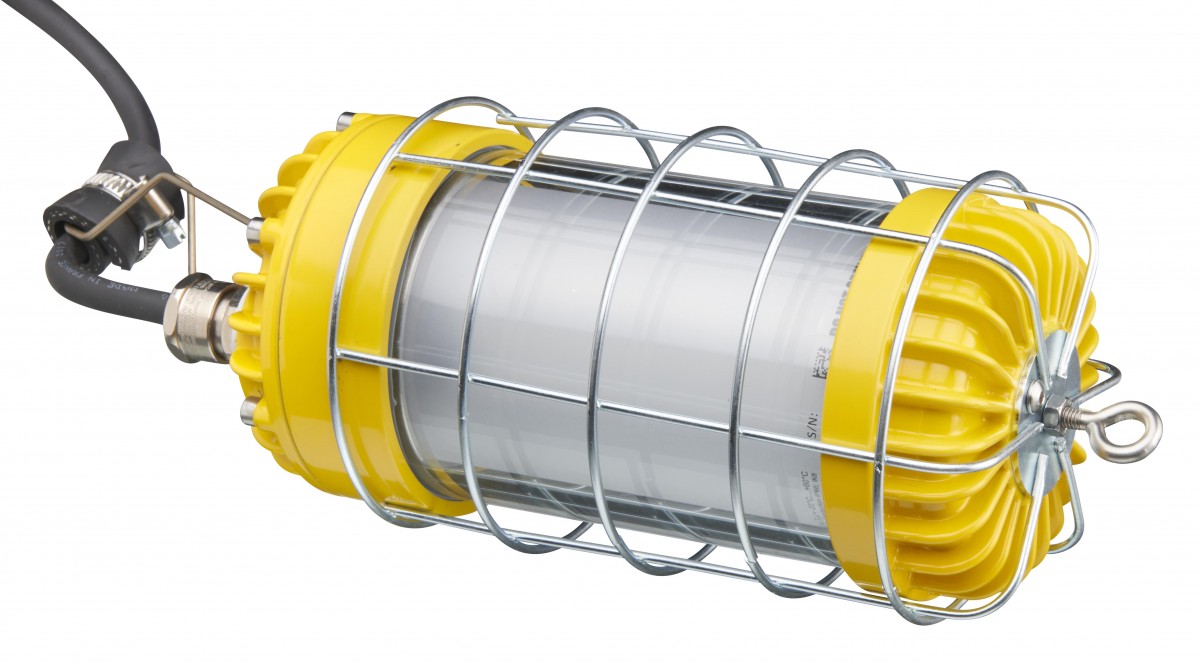

New generation portable ATEX LED worklight for Hazardous area. The latest member in the LED family of worklights, the new ATEX version had been developed to provide even greater technical reliability,and cut product life-cycle costs. The ATEX Pluto is manufactured with a unque eye protection diffuser.
General Details
PARAMETERS  |
|
|---|---|
| •General properties | |
| Lifespan | 60.000 hour |
| Colour temperature | 5.000 k |
| Luminous flux | 42V: 2500 lumen |
| 230V :3500 lumen | |
| Beam angle | 360° |
| •Electrical properties | |
| Power | 25-30 Watt |
| Voltage | 42V AC/230V AC |
| Plug | no plug no cable |
| Working environment | -40ºC/50ºC |
| Power Factor | 0.98 |
| CRI_RA | 86 |
| Frequency | 50Hz/60Hz |
| • Product information | |
| Article no. 42 Volt AC | 10504230 |
| Article no. 230 Volt AC | 105023030 |
| Product name | LEDPluto ATEX |
| Protection rate | IP 66 IK8 |
| Weight | 2.3 Kg |

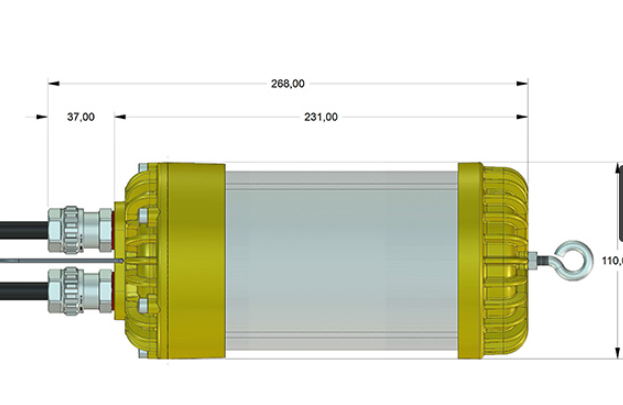

| •dimensions | |
| Diameter | 110 mm |
| Length | 268 mm |

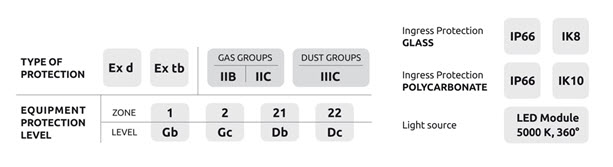

II 2G Ex db IIC T6 Gb; II 2D Ex tb IIIC T85°C Db
